New and Used Dump Trailers
As the professional manufacture, we would like to provide you high quality New and Used Dump Trailers. And we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description

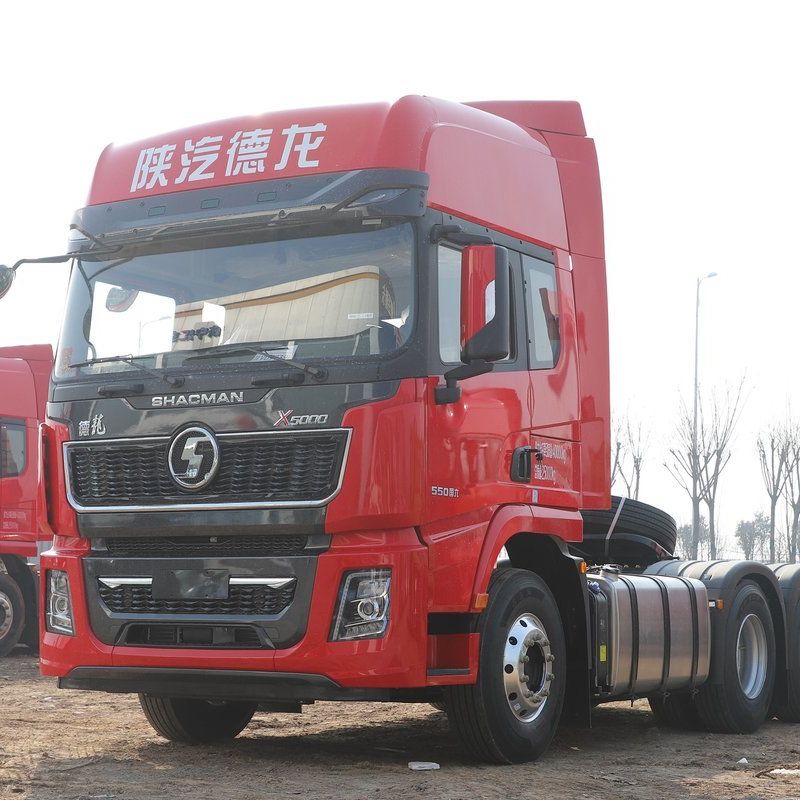

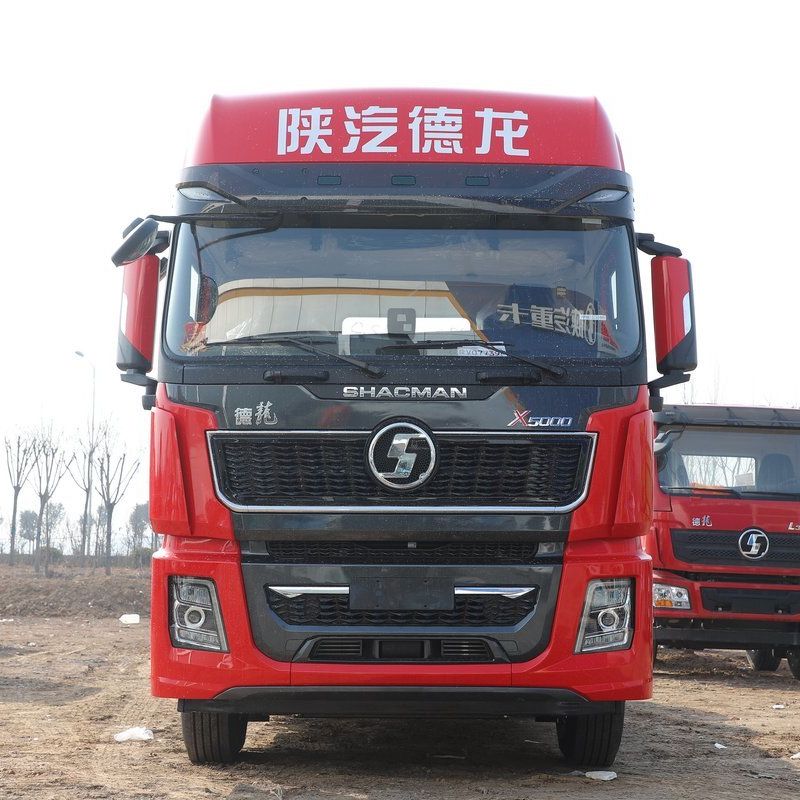

New and Used Dump Trailers
| SX4259XD4F1 Drive form: 6X4 | |
| Wheelbase: 3300 + 1350mm | Engine: Weichai WP13.530E62 |
| Transmission: the Fast Q12MO | Rear bridge speed ratio: 3.7 |
| Body length: 7.225 m | Body width: 2.55 m |
| Body height: 3.75 meters | Front wheel pitch: 2,036 mm |
| Rear wheel pitch: 1860 / 1860mm | Vehicle weight: 9.1 tons |
| Total mass: 25 tons | Total traction mass: 40 tons |
| Top speed: 89km / h | Market segment: bulk material transportation |
| Origin: Xi'an, Shaanxi province | Tonnage level: heavy truck |
| Note: Standard: TianJian Zhi ya version, maintenance free battery; Optional: North package (800L dual cavity aluminum alloy tank (tank water heating), independent warm air heating, 180Ah low temperature maintenance-free battery, heated air main seat), Expansion kit (jack, crowbar, accessory kit), 90 Saddle seat, 1000L aluminum alloy fuel tank (in parallel), 1000L aluminum alloy fuel tank (parallel) (tank water heating), Engineering vehicle bumper, TianXing JianZhiXing edition, scuttle, PR101 Spline force tor, The 800L aluminum alloy oil tank, S12MO-Aluminum Shell + 3.7 / Q12MO-Aluminum Shell + 4.111. Version:, and the classic edition | |
| engine parameter | |
| Engine model: Weichai WP13.530E62 | Engine brand: Weichai |
| Number of cylinders: 6 | Fuel type: diesel oil |
| Cylinder arrangement form: inline | Displacement capacity: 12.54L |
| Emission standard: State VI | Max horsepower: 530 horsepower |
| Maximum output power: 390kW |
|
| Cab parameters | |
| Cab room: high top | Cab suspension:, four-point airbag suspension |
| Number of passengers: 2 seats number: half |
|
| Cab lift: electric |
|
| Transmission parameters |
|
| Transmission model: Fast Q12MO | Transmission brand: Fast |
| Shift shift mode: manual | Forward gear: the 12th gear |
| Reverfiles: 2 | Shell material: aluminum alloy |
| fuel tank |
|
| Fuel tank / air tank material: aluminum alloy | Tank capacity: 600L |
| Chassis parameters | |
| Frame size: (940-850) 300 (single 8) mm | Front bridge description: Drum-type front bridge |
| Rear axle description:, drum type drive axle | Allowable load of the front axle: 7,000 kg |
| Allowable load of rear axle: 18000 (2-axis group) kg | Speed ratio: 3.7 |
| Number of spring sheets: 2 / 3 | Saddle seat: 50 # |
| tyre | |
| Number of tires: 10 tires | Tyre specification: 12R22.5 18PR |
| Control configuration | |
| ABS anti-lock death: ● |
|
| External configuration | |
| air deflector:○ |
|
| interior collocation | |
| Multi-function steering wheel: ● | Air-conditioning adjustment form: automatic |
| Power window: ● Electric rearview mirror: ○ |
|
| Electric heating electric heating: ○ | Electronic central control lock: ● |
| Lighting configuration | |
| Halogen headlights: ● LED headlights: ○ |
|
| Brake brake | |
| Hydraulic retarder: optional assembly |
|
| Intelligent configuration | |
| Cruise fixed speed: ○ | Forward collision warning system: ● |
